SAF PA11 ECO
Environmentally friendly and the toughest material we offer on our service
SAF PA11 ECO 3D Material
Eco-friendly! PA11 is made from renewable resources that come from natural vegetable and castor oil source materials.
The process has a lower environmental impact from manufacturing the powder through to end of life of the products it makes.
Processed with SAF™ technology on the Stratasys H350 3D printer, Stratasys High Yield PA11 delivers production-grade plastic parts for high-volume demands — driving new areas of business growth.
Stratasys High Yield PA11 enables a high build density while maintaining high part consistency to deliver production-level yields. Crucially, this datasheet includes both mechanical and geometric properties from within the same builds, highlighting the H350’s ability to produce both strong and accurate parts, with no compromise.
Machine, Sizes, and Finishes
Machines We Use
The Stratasys H350 3D printer – the only one currently available in the UK.
Maximum Part Size
290mm x 165mm x 270mm
(Economy, Express & Trade service)
Finishes Available
Colours Available
Grey | Black
Appearance and Finish

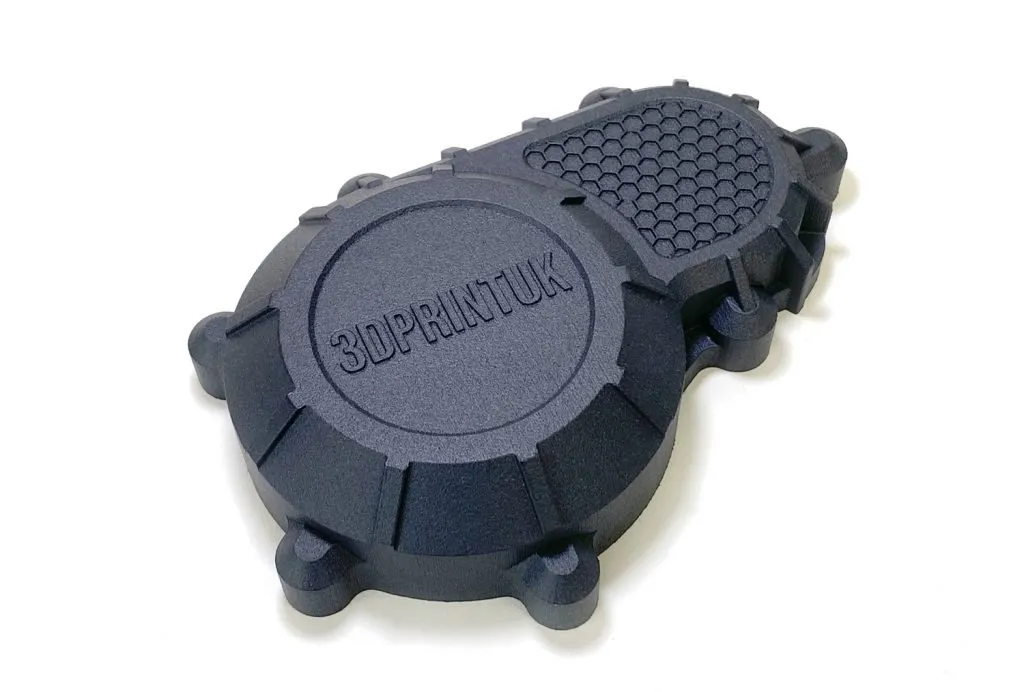

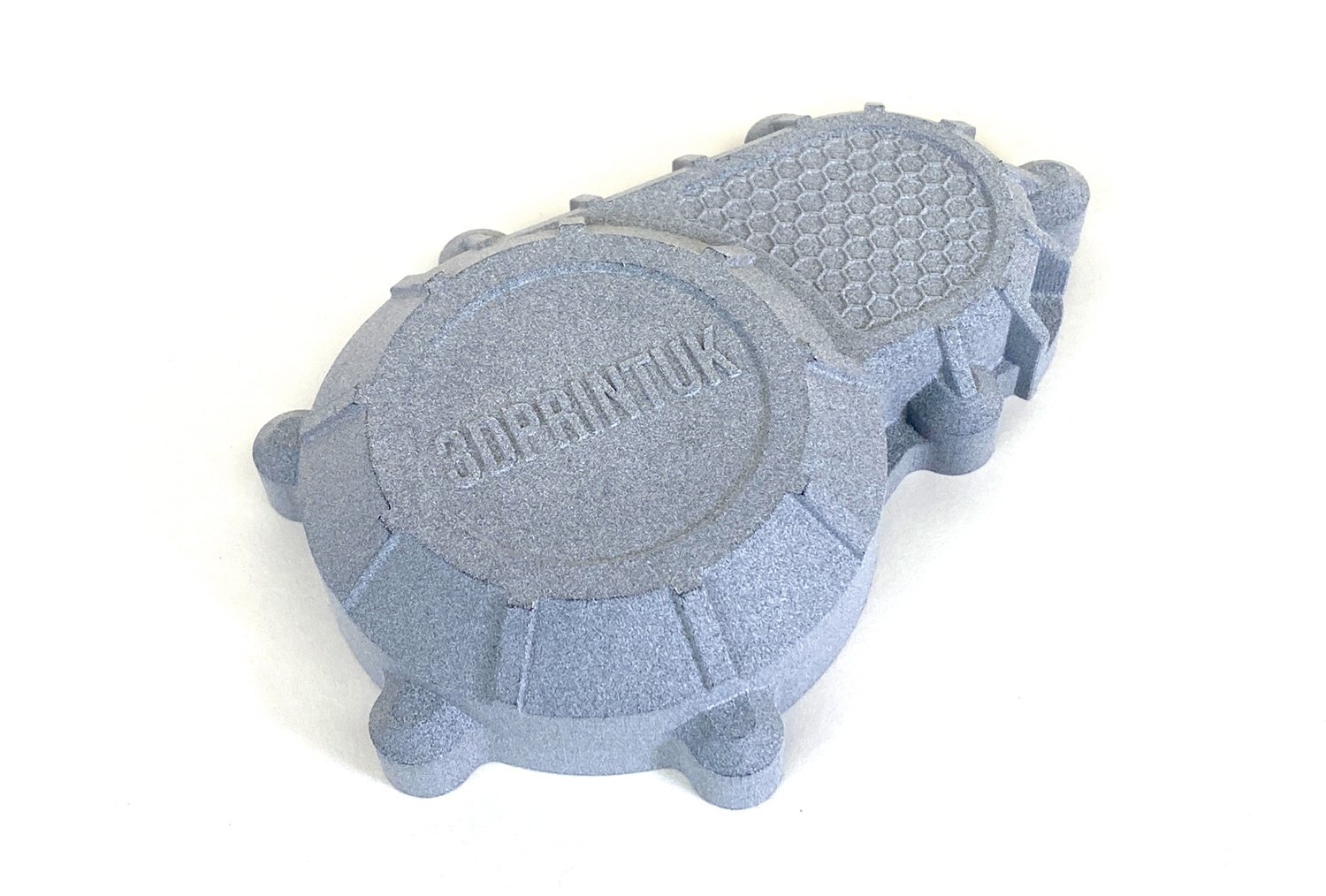

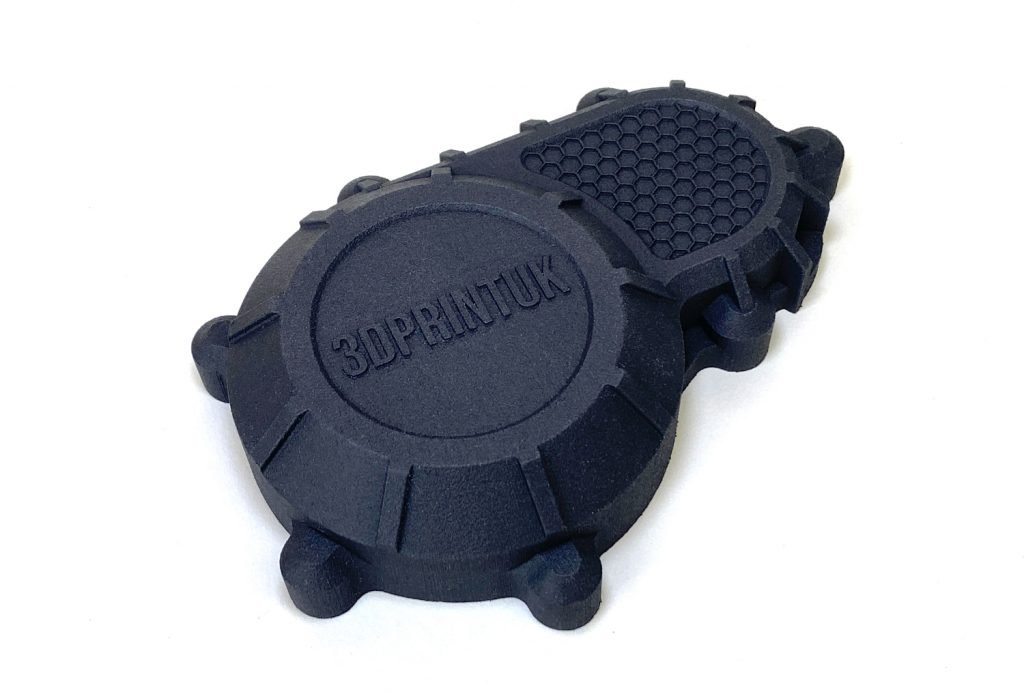

The SAF PA11 material can be delivered in many of the finishes we offer, which include Natural, Vibro Polished and Shot Peened. Here are a few examples of how the SAF PA11 material appears after undergoing our post processing finishes.
Which Material is right for you?
In the chart below you can compare the main mechanical properties of each materials. To make it easier to compare, we have given each value a rating out of 5 (0.5 increments). This can also be seen in the table below. You can toggle each material visibility on/off using the buttons on the right.
| Property | Mean | Standard Deviation | Unit | Test Standard |
|---|---|---|---|---|
| Tensile Strength (XY) | 51 (7397) | 2.2 (319) | MPa (psi) | ASTM D638-14 |
| Tensile Strength (Z) | 47 (6817) | 4.4 (638) | MPa (psi) | ASTM D638-14 |
| Elongation at Break (XY) | 30 | 5.6 | % | ASTM D638-14 |
| Elongation at Break (Z) | 11 | 4.8 | % | ASTM D638-14 |
| Flexural Strength (XY) | 35 (5033) | 2.3 (327) | MPa/psi | ASTM D790-17 |
| Flexural Strength (Z) | 36 (5280) | 2.9 (414) | MPa/psi | ASTM D790-17 |
Benefits of using PA11 as a 3D Printed Material
Properties
Accuracy
★★★★★
Expected: 0.1mm or 0.1%
Guaranteed: 0.3mm or 0.3%
Repeatability
★★★★★
One of our most repeatable materials, perfect for batch production.
Strength
★★★★☆
Our strongest material in terms of tensile and impact resistance. See data below.
Flexibility
★★★★☆
Our most flexible polymer other than our rubberlike SLS TPU
Melting Point
★★★★☆
Great thermal resistance with a melting point of 190 degrees C
Resistance to Warping
★★★☆☆
Warping is almost non-existent with this material due to its flexibility, however, very rectangular geometries can shrink erratically.
Elemental and UV Degradation
★★★★☆
Great resistance to the elements can be used for outdoor products.
Chemical and Water Resistance
★★★★☆
Has great chemical and water resistance.
3DPRINTUK observations while working with SLS PA12
Wall Thickness
Though SAF PA11 ECO has the best mechanical properties, very thin-walled items can be brittle. If your dimensions are close to our recommended minimums, parts can be a more prone to breaking than SLS PA12 and MJF PA12 – we recommend making geometries a little thicker to take full advantage of the mechanical properties.
Pixel Stepping
Layer-like lines are visible on near vertical surfaces – these are not layer lines, but rather pixel lines from the print heads. These can be visible on smooth curves and parts with overhangs such as drafted surfaces.
Small Hole and Cavities
PA11 runs at a higher temperature than our other materials as a result we recommend that you pay careful attention to small hole and cavities in your designs and where possible use creative solutions to help these clear out in post-processing.
Talk to Andrew, our Head of Technical Sales, and discover how our services can save you time and money while achieving the highest quality prints.
Certifications
Flame Retardancy
Yes, SAF PA11 has UL94 HB certification.
Food Grade
No, SAF PA11 does not currently have any food safety certifications.
Skin Safe
Yes, SAF PA11 is certified as non-irritant and shows no cytotoxic effect.
ESD
SAF PA11 is NOT classed as an ESD safe material.
Datasheets
For more information on SAF PA11 please download the datasheet you require from the list below. If you have any further questions please feel free to give us a call to discuss your project.
Design Guidelines, Maximums and Minimums
Max Print Size
This is the maximum size we can print a part in one piece
Express: 270 x 190 x 275mm
Economy: 270 x 190 x 275mm
Trade: 270 x 190 x 275mm
Min Wall Thickness
This is the minimum wall thickness we can guarantee to print. You are able to print under this guarantee at your own risk, however, prints under our guarantee are not covered for a free reprint if damaged.
Natural: 1mm
Shotpeen: 1.5mm
Polished: 2mm
Min Embossed Thickness
This is the minimum thickness a surface detail can be – this includes text and small intricate details. Note the thickness stroke width, not the width of the entire letter if referring to text.
Width: 0.5mm
height: 0.3mm
Min Engraved Thickness
This is the minimum thickness a engraved surface detail can be – this includes text and small intricate details. Note the thickness stroke width, not the width of the entire letter if referring to text.
Width (except shotpeen): 0.5mm
Width (shotpeen): 0.7mm
Depth: 0.3mm
Min Hole Sizes
This is the minimum diameter of a hole. As a rule of thumb, the longer the hole, the larger the diameter is required to prevent them from blocking with powder. It is best to avoid long and twisting holes as these are near impossible to clear the powder from post-print.
<2mm depth: 1mm
2-5mm depth: 2mm
5-10mm depth: 3mm
10mm+: at least 4mm
*Powder may not be able to be cleared out of holes longer than 30mm
Clearance
This is the minimum gap required between two separate parts that are designed to fit together, such as a case and a lid. This is the distance between surface faces – remember that this is each side meaning that you need to double this measurement if the whole part is interlocking. e.g. if a shaft is going into a hole, 0.15mm between surfaces means 0.3mm between diameters.
Tight fit: 0.15mm
Smooth fit: 0.25mm
Flat/Warpable Parts
Flat parts are prone to warping. Warping is where the part cools at different rates causing geometrical changes in the object. It is best to try to avoid these shapes where possible, or contact us to ask for advice.
Limitation: part dependant – ask us if you are concerned.
Min Sharp Angle
This is the minium angle recommended without a fillet or chamfer. Parts with sharp angles tend to get damaged in the print or post-processing stages. Anything sharper than the minimum angle is recommended to have a fillet.
Min Angle: 60°
Sharp Angle Fillet
Anything sharper than our minimum guaranteed angle is recommended to have a filleted edge. Filleted edges are far stronger than sharp edges and are less prone to damage in either post-processing or print stages.
Min Fillet: 1mm
PA11 ECO – Get an Instant quote using our online system
SAF PA11 ECO is our first step towards more eco-friendly manufacturing options. Our Uploading System takes price breaks into consideration for higher quantities and is the fastest way to get a quote for your project.
Other Material Options
Finish Options
| Finish | Min Thickness | Cost | SLS PA12 | MJF PA12 | SAF PA11 | SLS TPU | Express | Economy | Trade | Scheduled |
|---|---|---|---|---|---|---|---|---|---|---|
| Natural | 1mm | Free | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Vibro Polished | 2mm | +2% | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Shot Peened | 1.5mm | +7% | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Vapour Smoothed | 1.5mm | 30p +10% | ✔ | ✔ | ✔ | ✔ | ✔ |
Colour Options
| Colour | Min Thickness | Cost | SLS PA12 | MJF PA12 | SAF PA11 | SLS TPU | Express | Economy | Trade | Scheduled |
|---|---|---|---|---|---|---|---|---|---|---|
| Black | 1.5mm | +10% | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Standard Colours | 1.5mm | £10 +10% | ✔ | ✔ | ✔ | ✔ | ||||
| Custom Colours | 1.5mm | £60 + 10% | ✔ | ✔ | ✔ |
